How to Configure LiFePO4 Battery Packs for Optimal Voltage

Understanding LiFePO4 Chemistry and Voltage Fundamentals

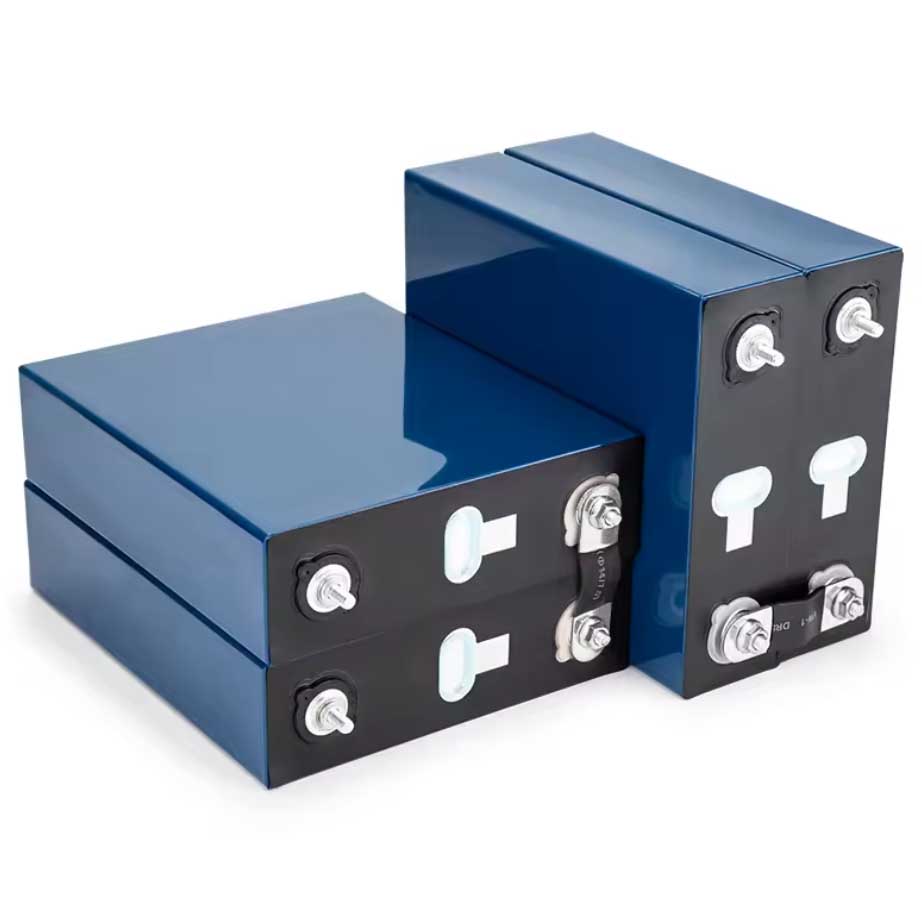

When it comes to powering your devices with reliability and efficiency, LiFePO4 battery (Lithium Iron Phosphate) is a game changer. With a -nominal voltage of 3.2V per cell, these powerhouses have revolutionized the energy storage industry. But, what does this mean for you when assembling a LiFePO4 battery pack?

Firstly, it’s pivotal to grasp the -chemistry behind these cells. Unlike traditional lithium-ion batteries, LiFePO4 cells offer a steadier discharge curve and enhanced safety due to their stable -lithium iron phosphate chemistry. This translates to consistent performance over a wide range of temperatures and less risk of thermal runaway.

Calculating the total voltage for your LiFePO4 battery pack is like piecing together a puzzle. Every additional cell you connect in series (SER) augments the overall voltage. For instance, a 4S configuration (4 cells in series) will yield 12.8V (3.2V * 4). Simple, right? But here’s the kicker: higher voltage isn’t always better. You must tailor your LiFePO4 battery pack to the voltage requirements of your application to avoid damaging your electronics—or worse, creating a fire hazard.

                  .

Crafting the Perfect LiFePO4 Battery Pack Configuration

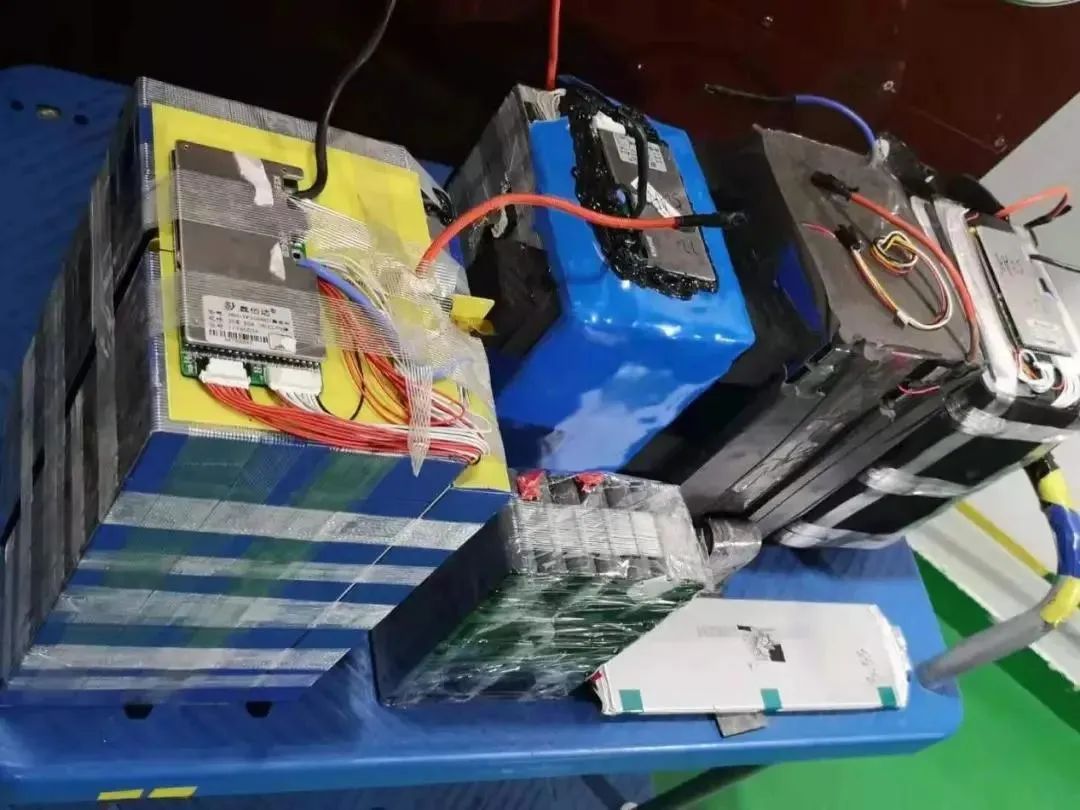

Now that we understand the fundamentals, let's delve into the art of crafting the perfect LiFePO4 battery pack. For high-power applications, configuring your LiFePO4 battery pack for a higher voltage is key—but with great power comes great responsibility. You need to ensure your LiFePO4 battery management system (BMS) can handle the -amperage and provides overcharge, deep discharge, temperature, and short circuit protection.

Here's a pro tip: Always consult the datasheet of your cells and BMS to avoid any missteps. This is where the concept of C-rating comes into play. The C-rating dictates the safe charging and discharging currents for your cells. For example, a 100Ah cell with a 1C rating can be safely charged or discharged at 100A.

Remember, connecting cells in parallel (PAR) increases the capacity (Ah) without altering the voltage. This is ideal for applications requiring longer run times without the need for a higher voltage. A 4P configuration (4 cells in parallel) quadruples the capacity while maintaining the same 3.2V per cell.

Let's get technical for a moment. The internal resistance of your cells also plays a crucial role. Lower internal resistance means less heat generation and more efficient power delivery.

Figure 5.2.2 Statistical Table:

Navigating Regulatory Compliance and Safety

Navigating the labyrinth of regulatory compliance is paramount when assembling your own LiFePO4 battery packs. International standards such as IEC 62619 and UN38.3 provide guidelines on safety requirements for LiFePO4 cells. These include rigorous thermal runaway tests, ensuring that your LiFePO4 battery pack can withstand extreme conditions without causing harm.

In addition to these certifications, always ensure that your LiFePO4 battery pack is housed in a robust enclosure to protect against physical damage and environmental factors. This isn't just about safety; it's about the longevity and reliability of your pack.

Lastly, we must highlight the importance of regular maintenance and inspection. Even the most meticulously designed LiFePO4 battery pack can succumb to wear and tear. Periodic checks can preemptively identify potential issues before they escalate.

Conclusion

Optimizing the voltage configuration of LiFePO4 battery packs is essential for maximizing their efficiency, performance, and longevity. By understanding the principles of series and parallel connections, calculating total voltage, and implementing proper cell balancing techniques, you can ensure that your LiFePO4 battery pack operates at its full potential. Remember, proper voltage configuration not only enhances the functionality of the battery pack but also contributes to its overall safety and reliability in various applications.

What is the highest voltage battery pack I can create with LiFePO4 cells?

Theoretically, the voltage is limited by the number of cells you can connect in series and the voltage threshold of your BMS. However, practicality and safety regulations often cap this number.

How do I calculate the total voltage of my battery pack?

Multiply the nominal voltage of a single cell by the number of cells connected in series.

Can I mix different capacities of cells in one battery pack?

It's not advisable, as it can lead to imbalanced charging and discharging, potentially damaging the cells and posing a safety risk.

What should I look for in a BMS?

Key features include overcharge and deep discharge protection, temperature monitoring, balancing function, and high current handling capability.
