How to DIY 3.2V LEP Cells to 12V Battery Packs ?

Introduction

Creating 12V battery packs from 3.2V LEP cells is a cost-effective and efficient way to power various devices. In this detailed guide, we will walk you through the process of assembling 3.2V LEP cells into 12V battery packs step by step.

Materials Needed

To make a 12V battery pack from 3.2V LEP cells, you will need the following materials:

• * 4 x 3.2V LEP cells
• * Battery management system (BMS)
• * Nickel strips
• * Spot welder
• * Insulating tape
• * Soldering iron
• * Heat shrink tubing
• * Multimeter

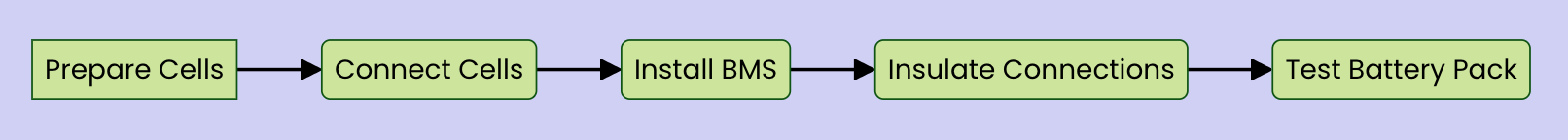

Step-by-Step Guide

1. Prepare the LEP Cells

Ensure all 3.2V LEP cells are fully charged and have the same capacity.

Check the voltage of each LEP cell using a multimeter to confirm they are at 3.2V.

2. Connect the LEP Cells

Use nickel strips to connect the LEP cells in series, ensuring the positive terminal of one LEP cell is connected to the negative terminal of the next LEP cell.

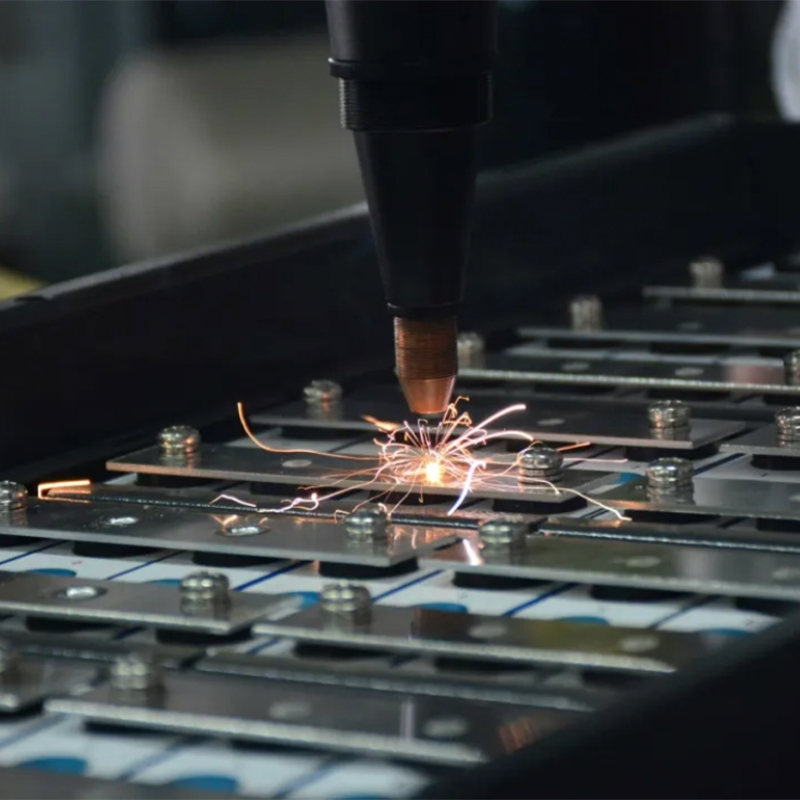

Weld the nickel strips to the terminals of the LEP cells using a spot welder.

3. Install the BMS

Connect the battery management system (BMS) to the 12V battery pack to monitor and balance the LEP cells.

Solder the BMS wires to the nickel strips, following the manufacturer's instructions.

4. Insulate the Connections

Use insulating tape to cover the exposed nickel strips and prevent short circuits.

Apply heat shrink tubing over the entire battery pack and use a heat gun to shrink it in place.

5. Test the 12V Battery Pack

Use a multimeter to check the voltage of the assembled 12V battery pack.

Charge the battery pack using a compatible charger and monitor the voltage levels.

Conclusion

By following these step-by-step instructions, you can successfully create 12V battery packs from 3.2V LEP cells. Ensure to handle the cells and equipment with care, follow safety precautions, and test the battery pack before use to ensure optimal performance and safety.
